The Domino is one of the first graphic cards for Amiga computers who were equipped with a so called 'Workbench Emulation'. This means that new screen modes are created by the driver software which then can be used by system compliant applications either in a window on workbench or opening their own screens without needing to be changed.

It was developed by Village Tronic on behalf of X-Pert Computer Services. The workbench emulation was developed by Thomas Sontowski (as far as known ¹⁾). The underlying liraries which contain the actual graphic functions were created by David Göhler and Klaus Burkert.

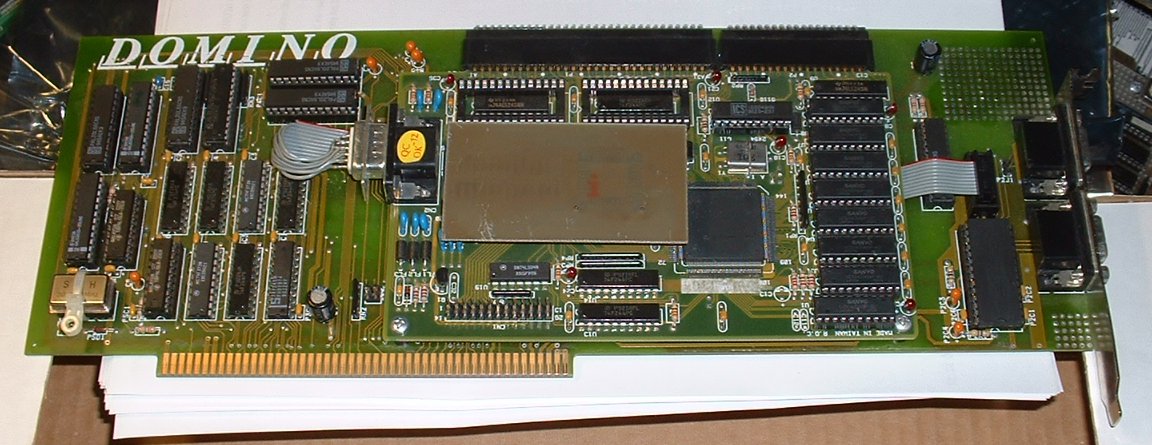

The card is a combination of a PC ISA bus card with a Tseng ET4000 graphic controller using 1MB RAM and a second board which contains the conversion hardware for the Zorro-Bus of the Amiga and a display switch.

The cards Digital to analog converter (DAC) supports 16, 256 und 32768 color modes as a plain frame buffer. A Blitter was first introduced for a later version (W32) of the ET4000 chip.

The picture on right hand side show a prototype with a 24 bit DAC on an adapter board. This version was never sold.

Tseng ET4000AX

• 1MB DRAM ~ 53MB/s memory bandwith
• internal ISA Bus
• Display switch (optional, Siliconix DG894)
• 89,8Mhz maximum pixel clock

• Picasso96
• CyberGraphX V2
• EGS
• original Software which came with the card

• http://aminet.net/package/driver/video/Picasso96
• http://telefisk.org/old/amiga/domino/domino_faq.php (en)
• http://aminet.net/docs/rview/DominoBoard24K.txt (en)
• http://amiga.resource.cx/exp/domino (en)
